The path of the edge
From raw to finished.
The raw edge of the panel enters the machine. Keep scrolling: at every unit the edge changes.
All technical data, documents and photos
Edgebander
Format4Tempora F600 60.06LX
Edge bands and solid-wood strips. Straight edges in one pass.
New · Year 2023 · In stock in Ljubljana
63.172,00 €+ VAT
A professional edgebander for gluing edge band and solid-wood strips and for finishing straight edges in one pass, with motorised adjustable units and ready for nesting production too.
How it works
The edge, step by step.
The panel travels through the key units of an edgebander. As you scroll, you see what happens to the edge at each one.
Pre-milling unit
A smooth edge first.
The pre-milling unit trues the edge of the panel before any glue is applied, so the band bonds to a flat, clean edge.
Gluing
Glue on a prepared edge.
The glue is applied to the pre-milled edge, and the band is bonded to it in the same pass.
Pressure unit
The band, pressed onto the edge.
The pressure rollers press the band onto the glue.
End-trimming unit
A clean finish at both ends.
At the start and end of the panel the end-trimming unit cuts off the overhanging band, so the band finishes flush with the panel.
Trimming unit
The band, flush with the panel.
The trimming unit removes the band overhang above the top face and below the bottom face, so the band sits flush with the panel.
Radius scrapers
A smooth, rounded edge.
The radius scrapers smooth the rounded edge of the band and remove the tool marks.

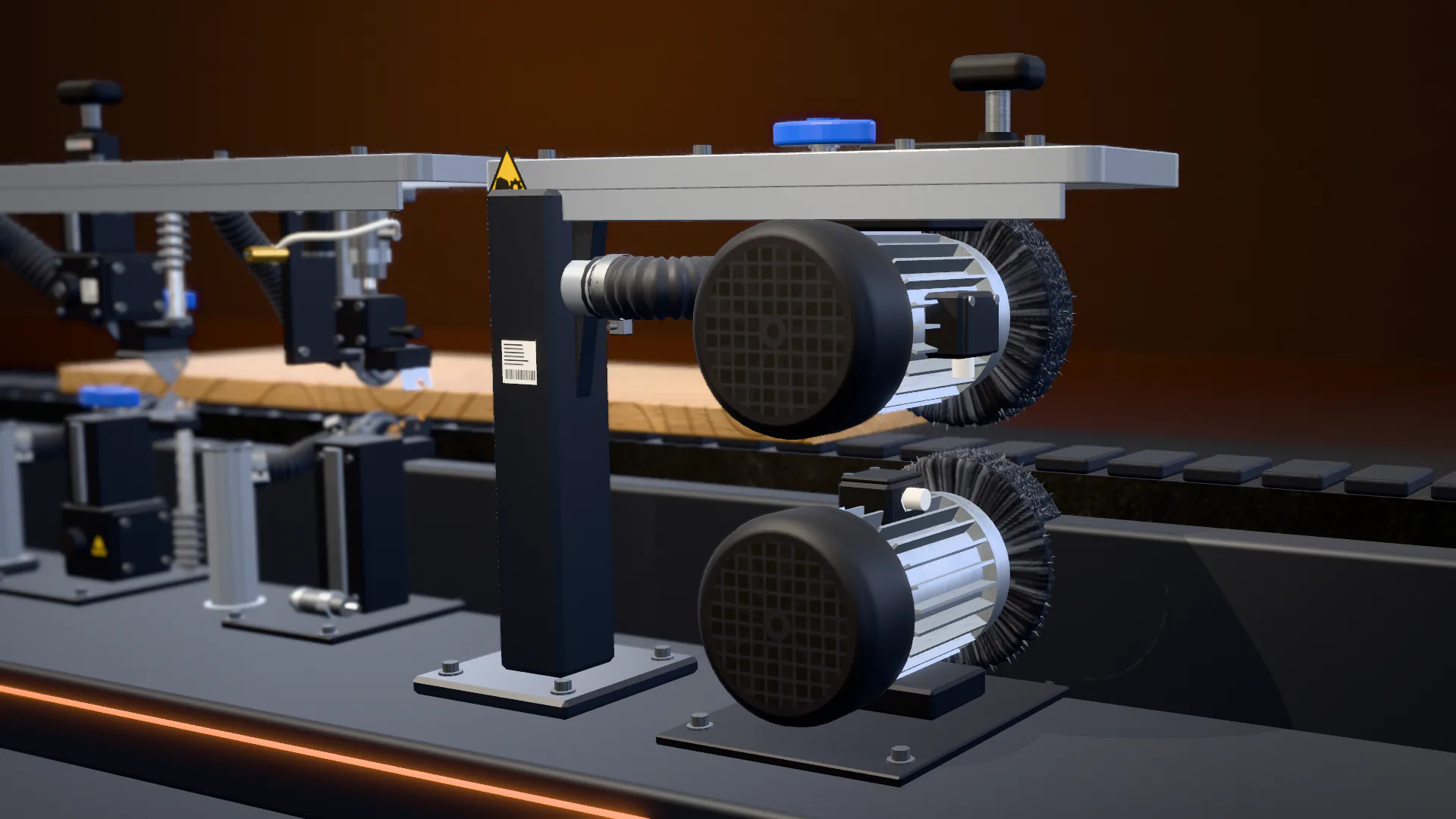

Edge cleaning
A clean, finished edge.
The brushes clean the edge of the panel.
Illustration: only the key units of an edgebander are shown, with spacing adapted for display. It is not a recording of this machine.
Manufacturer photographs
A look into the units.
Units of the Tempora F600 in the manufacturer’s own photographs. The version in stock may differ in details.
Pre-milling unitThe pre-milling unit trues the edge of the panel before the glue is applied.Photo: FELDER Group
Glue unitThe glue unit of an edgebander.Photo: FELDER Group
Pressure unitThe pressure rollers press the band onto the glue.Photo: FELDER Group
End-trimming unitCuts off the band overhang at the start and end of the panel.Photo: FELDER Group
Trimming unitTrims the band flush with the panel above the top face and below the bottom face.Photo: FELDER Group
Radius scrapersThey smooth the rounded edge of the band and remove tool marks.Photo: FELDER Group
Videos
From the manufacturer.
The player loads only when you press the button.
X-Motion Plus control
15-inch touchscreen.
X-Motion Plus control with a 15-inch touchscreen.
Footprint and connection
A machine 4400 mm long.
4400 mm long, 1000 mm wide and 1500 mm high. The connection is three-phase, 3×400 V.
4,400 mmLength of the machine
Photos
Up close.
This machine in our showroom in Ljubljana.
The machine from the front, with the screen The machine at an angle The Smartouch touchscreen
Edge processing units
Opened edge processing units The machine from the side
At a glance
In numbers.
Every figure comes from this machine's data.
- Workpiece thickness
- 8–60mm
- Edge band (coil) thickness
- 0.4–3mm
- Feed speed
- 10m/min
- Solid-wood strip thickness
- 0.4–6mm
- Minimum workpiece length
- 140mm
- Touchscreen
- 15″
- Length of the machine
- 4400mm
- Weight of the machine
- 900kg
Customer testimonial
What a user says.
Customer experience
Za Temporo smo se odločili, ker nam omogoča, da damo kos v stroj in ven pride očiščen in skončan. Tako prihranimo ogromno časa in energije.
Marko Đalić
Direktor, Amek d.o.o.
The testimonial concerns a Tempora F600 edgebander at the customer’s site. The recording does not show the machine in stock.
Specifications
Every technical detail.
Grouped by area. Search for a value or open a group.
Workpiece and edge
5
- Thickness of edge banding in roll
- 0,4–3 mm
- Thickness of solid wood edge strips
- 0,4–6 mm
- Workpiece thickness
- 8–60 mm
- Minimum workpiece length
- 140 mm
- Minimum workpiece width
- 70 mm
Edge preparation and gluing
4
- Pre-scoring unit
- Fitted
- Pre-milling cutter heads of increased height with interchangeable knives
- Fitted
- Infrared lamp for edge pre-heating
- Fitted
- Systems for applying release, cleaning and sliding agents
- Fitted
Edge processing
6
- Edge trimmer
- Fitted
- Multifunctional milling unit
- Fitted
- Rondomat
- Fitted
- Radius scrapers
- Fitted
- Flat scraper unit for nesting panel processing
- Fitted
- Edge cleaning brushes
- Fitted
Control and feed
6
- Feed speed
- 10 m/min
- X-motion Plus control with 15-inch touchscreen
- Fitted
- Motorised adjustment of processing units
- Fitted
- Data logging for multiple operators
- Fitted
- Infeed table with air cushion
- Fitted
- Extended infeed guide
- Fitted
Drive and connection
1
- Voltage
- 3×400 V
Dimensions and weight
2
- Weight
- 900 kg
- Dimensions
- 4400×1000×1500 mm
Machine
5
- Manufacturer
- Format4
- Model
- Tempora F600 60.06LX
- Year of manufacture
- 2023
- Condition
- New
- Category
- Edgebanders — Straight-edge edgebanders
Versions in stock
The same model, different versions.
The versions currently in stock. The price applies to each version separately.
New · Year 2025
Tempora F600 60.06 Gluebox
- Gluebox for PU tape + EVA adhesive hopper
- X-Motion Plus control with 18-inch touchscreen
- Power feeder for edge banding coils
67.452,00 €+ VAT
New · Year 2025
Tempora F600 60.06 LX
- Teflon adhesive pot 1.5 kg with Quick-Set system and inversion
- X-motion Plus control with 18-inch touchscreen
- Scraping unit 2 × 0.35 kW, tilt 0–10°
64.732,00 €+ VAT
New · Year 2023
Tempora F600 60.06LX
- X-motion Plus control with 15-inch touchscreen
- Infeed table with air cushion
- Flat scraper unit for nesting panel processing
63.172,00 €+ VAT
You are viewing this versionMachine page
Used, serviced · Year 2019
Tempora F600 60.06L
- Application roller with reverse rotation
- X-Motion Plus control with 15-inch touchscreen
- Unit for final edge cleaning and polishing
33.490,00 €+ VAT
Buy
In stock in Ljubljana.
Viewing and test run by appointment.
Format4 Tempora F600 60.06LX
New · Year 2023 · In stock in Ljubljana
Price
63.172,00 €+ VAT
Send enquiryCall +386 41 636 207
Download quote (PDF)Mon–Fri 8:00–16:00
When you buy the machine
- Every machine serviced and tested
- Delivery, installation and training on request, charged separately
- Available immediately from stock — a new machine made to order depends on the manufacturer's lead time.
- In stock at our premises in Ljubljana — viewing and test run by appointment.
Showroom
We run the machine live with your own material. Tacenska cesta 25, Ljubljana-Šentvid, Mon–Fri 8:00–16:00, by appointment.
See it in our showroomService
Our own service technicians across Slovenia and a spare-parts stock in Ljubljana. Installation, commissioning and training are arranged on request and listed separately in the quote.
More about serviceSend an enquiry
Or call Elvis: +386 41 636 207
